Product Name:

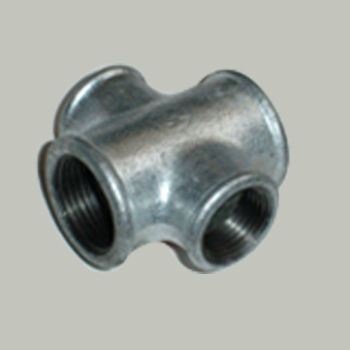

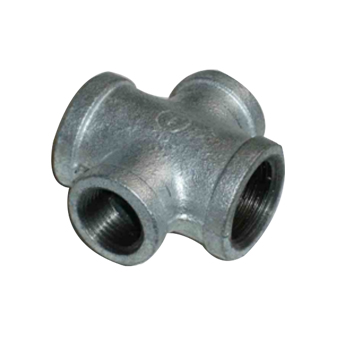

malleable iron pipe fitting cross reducing
  • API Gate Valve
  • API Gate Valve
Describe:

cross reducing:

Dimensions: BS143/1562, EN10242, ANSI/ASME B 16.3, ASME B 16.14, ASME B 16.39

Connection: jointing threads, sealing on the threads

Usage: Sprinkler Systems, Chilled/Heating Water, Natural Gas, Compressed Air, Hot Water & Steam, Fuel Transfer.

Model: The equal and reducing Elbow,Tee,Cross,Sockets,Nipple,Union etc.

Materials: Fittings: white heart malleable cast iron acc. to EN 1562, ASTM/ASME A197, ASTM A47; Surface: galvanized or black; Threads: external R and internal Rp acc. To EN 10226, ANSI/ASME B1.20.1

Max Working Pressure: Standard Fittings 25 Bar (-20ºC to 120ºC), 120ºC - 300ºC (interpolated values), 20 Bar (300ºC)

Working Temperature: Minimum -20ºC to maximum 300ºC

Coating: Galvanized, Black


If you want to know more details, please send an email to us to solidironfitting@aliyun.com.
